Alpine UTE 204 DAB inkl DAB Antenne

Features

Tuner

• Memory Presets: Preset Stations (FM:12, MW:6, LW:6)
• Memory: Auto Memory

RDS

• RDS Functions: AF, TA, TP, PTY, EON
• PTY (Programme Type) Display

DAB Tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Service Preset: 18 Preset Memory
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Antenna Power Supply Selection
• A compatible DAB Antenna is required

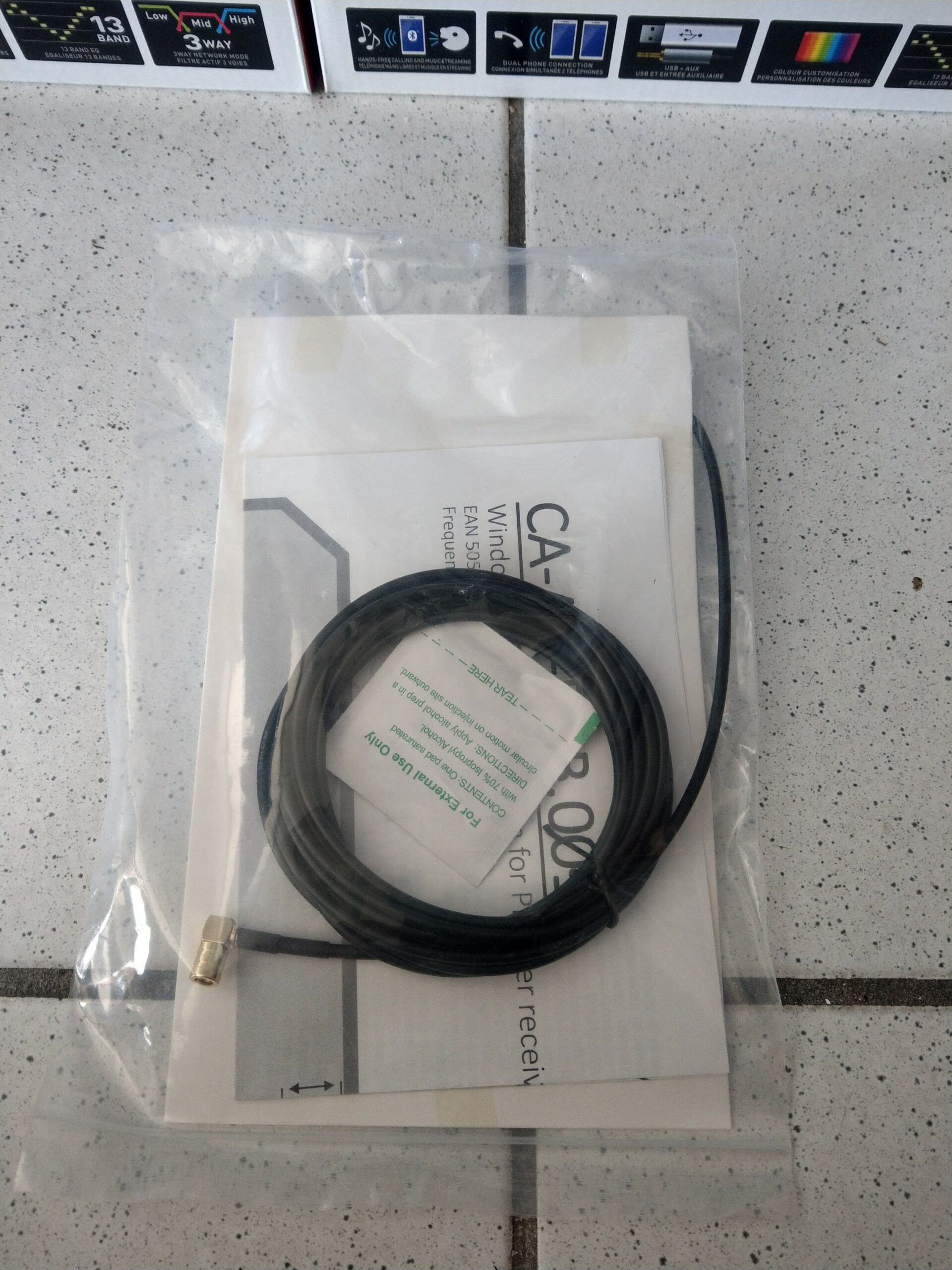

• DAB Antenne wird mitgeliefert

BLUETOOTH®

• Built-in BLUETOOTH® Module
• Hands Free Calling: HFP (Hands Free Profile)
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
• Phone Book Search
• Voice Dial Operation
• Auto Answer
• Call Waiting
• Call History Display: Phone Book Call, Dialled Call, Received Call
• Speech Volume Level Adjustment
• Hands-Free Phone Sound Setting
• Firmware Updatable
• Microphone Included

Made for iPhone® / iPod®

• Connection: USB connection (KCU-445i Required)
• Made for iPod/iPhone
• M.I.X. (Shuffle) Play: Track
• Repeat: All, Track
• Battery Charging

USB Media Connection

• Front USB Connection
• MP3, WMA, FLAC, AAC Playback
• Folder Up/Down
• M.I.X. Random Play
• Repeat: Track, Album, All
• USB AOA (Android Open Accessory) 2.0

Sound Tuning

• Subwoofer Level Adjustment
• BASS ENGINE SQ: Level Control OFF/1-6
• Subwoofer Phase Select: 0°/180°
• Subwoofer System Select
• High Pass Filter
• Low Pass Filter
• 2V Voltage 3PreOuts
• 10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
• 3-band Parametric Equalizer

General

• Power Output: 4 x 50 W High Power Amplifier
• Display LCD: 14 Segments White LCD Display 1Line
• Control Type: Rotary Encoder Knob
• Variable RGB Illumination Buttons
• 3 PreOuts (2V, Front / Rear / Subwoofer)
• 24-bit DAC
• Front AUX Input (3.5mm mini jack)
• Steering Wheel Remote Control Ready
• -20dB Mute
• Remote Control Ready
• Clock
• Detachable DIN Trim Plate
• Detachable Face Plate
• Dimmer
• Power Antenna Lead
• Remote Turn-On
• AUTO OFF function (after 30 min)

• Specifications

  Max Power Output Ratings

  • Max Power Output: 4 x 50W

  DAB Tuner

  • Tuning Range Band III : 174.928 – 239.2 MHz

  FM Tuner

  • Tuning Range: 87.5 – 108.0 MHz

  MW Tuner

  • Tuning Range: 531 – 1,602 kHz

  LW Tuner

  • Tuning Range: 153 – 279 kHz

  USB

  • USB Requirements: USB 1.1/2.0
  • Max. Power Consumption: 1000 mA
  • File System: FAT 16/32

  Sound Tuning

  • Subwoofer Level Adjustment: 0 to 15 dB
  • Subwoofer Phase Setting: 0° or 180°
  • High Pass Filter: Off, 80/100/120 Hz
  • Low Pass Filter: Off, 80/100/120 Hz
  • Bass Level Control Range: ±7 dB at 100Hz
  • Bass Center Frequency: 60/80/100/120 Hz
  • Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
  • Treble Level Control Range: ±7 dB at 10 kHz
  • Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
  • Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
  • Mid Level Control Range: ±7 dB
  • Mid Center Frequency: 500/1k/1.5k/2.5k Hz
  • Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)

  General

  • Power Requirement: 12V.DC
  • Pre Output Voltage (Before Clipping): 2V / 10k ohms
  • Aux In: 1.4V / 10k ohms
  • Maximum Mounting Angle: 30°
  • Weight: 0.8 kg

  Dimensions

  • Din Size: 1 DIN
  • Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
